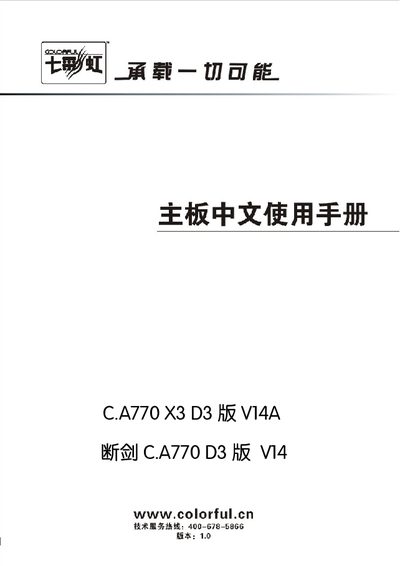

C.A770 X3 D3 版 V14A 断剑 C.A770 D3 版 V14 manual, introduces the features and characteristics of the product, including hardware installation, driver installation instructions, BIOS settings, etc.
The manual introduces the Colorful C.A770 series motherboards, which use the AMD RX780+SB700 chipset and support AMD Socket AM3 processors. It details the board layout, memory configuration with four DDR3 slots, dual‑channel support, and various expansion slots including PCI‑Express x16, PCI, and Mini‑PCIe for Wi‑Fi.
Installation steps, driver setup, BIOS configuration (AMI Flash ROM), and safety precautions are provided. The document also lists connectivity options such as six SATA II ports, a gigabit Ethernet controller, 10 USB2.0 ports, an 8‑channel audio codec, and optional Bluetooth on the X3 version. This manual is written in Chinese.
| Chipset | AMD RX780+SB700 |
|---|---|
| CPU Socket | AMD Socket AM3 |
| Memory Slots | 4 DDR3 slots, dual‑channel 1066/1333 MHz |
| PCI‑Express Slots | 2 × PCI‑Express x16 (16‑lane + 4‑lane) |
| PCI Slots | 2 × PCI |
| SATA Ports | 6 × SATA II, 1 × eSATA |
| USB Ports | 10 × USB2.0 (4 expandable) |
| Audio | 8‑channel high‑definition audio controller |
| Bluetooth | Built‑in Bluetooth chip (X3 version only) |
| BIOS | AMI Flash ROM |
The board provides four DDR3 slots supporting dual‑channel memory.
It uses an AMI Flash ROM BIOS.
Yes, the C.A770 X3 D3 version has a built‑in Bluetooth chip, while the Broken Sword version does not.
The motherboard is based on the AMD RX780+SB700 chipset.
