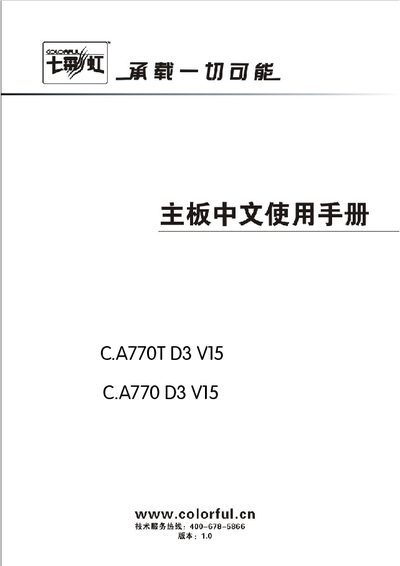

This document is the user manual for C.A770T D3 V15/C.A770 D3 V15, including hardware installation, driver installation instructions, BIOS settings, etc.
This manual covers the full range of information needed to install and configure the Colorful C.A770T D3 V15 (also listed as C.A770 D3 V15) motherboard. It includes chapters on hardware installation, BIOS features, power management, PCI/PCIe configuration, integrated peripherals, and troubleshooting.
The document also lists detailed technical specifications such as chipset, CPU socket, memory support, expansion slots, storage interfaces, audio, and networking capabilities, along with safety and regulatory notices. This manual is written in Chinese.
| Form factor | ATX |
|---|---|
| Chipset | RX780+SB710 |
| CPU socket | AM3 |
| Memory slots | 2 DDR3 slots, dual‑channel |
| Memory type | DDR3 1066/1333 MHz |
| PCI Express slots | 2 × PCI‑Express x16, 1 × PCI‑Express x8, 2 × PCI |
| SATA ports | 6 × SATA III |
| IDE ports | 1 × IDE |
| USB ports | 10 × USB 2.0 |
| Ethernet | 10/100/1000 Mbps |
| Audio | 8‑channel HD audio, 6‑channel optional |
The motherboard provides six SATA III ports.
It uses an AM3 socket for AMD processors.
It supports DDR3 memory at 1066 MHz or 1333 MHz in dual‑channel mode.
The board includes ten USB 2.0 ports.
