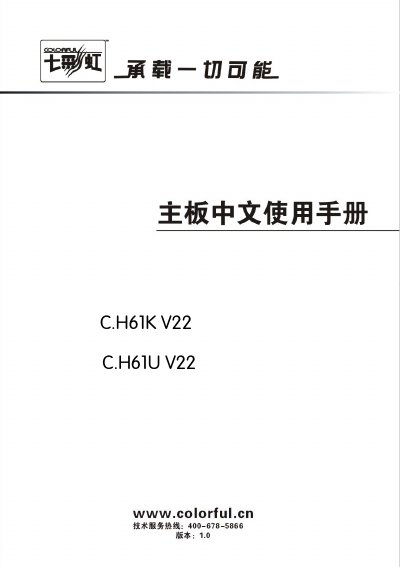

C.H61K V22 C.H61U V22 motherboard user manual, introduces the motherboard hardware installation, driver installation, BIOS setup and other contents.
This manual provides step‑by‑step instructions for installing the Colorful C.H61K V22 and C.H61U V22 motherboards, including checking the package contents, mounting the board, connecting power and data cables, and configuring jumpers. It also details driver installation procedures and how to access and adjust BIOS settings such as system information, boot options, security passwords and over‑clocking.
Additional sections cover the board layout, connector pin‑outs, troubleshooting tips, and BIOS update instructions. Contact information for Colorful technical support and service centers across China is included for further assistance. This manual is written in Chinese.
| Chipset | Intel H61 high‑speed chipset |
|---|---|
| CPU socket | LGA1155 (Intel Sandy Bridge) |
| Expansion slots | 2 × PCI‑Express x16, 2 × PCI‑Express x1 |
| SATA ports | 4 × SATA2 |
| USB ports | 8 × USB 2.0 |
| LAN | Integrated gigabit Ethernet (C.H61U V22 uses 100 Mbps) |
| Audio | 6‑channel high‑definition audio |
The board provides four SATA II connectors for storage devices.
Both models use an LGA1155 socket for Intel Sandy Bridge processors.
In the BIOS menu select “Load Fail‑safe Defaults” or “Load Optimal Defaults” to restore default values.
