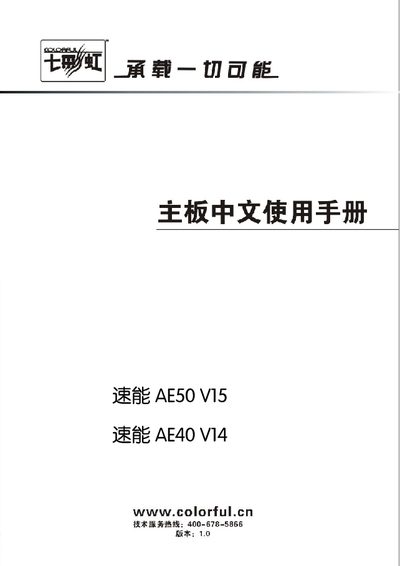

User manual for the Colorful AE50 V15 and AE40 V14 motherboards, covering installation, BIOS setup, drivers and specifications.
This manual provides a complete guide for the Colorful AE50 V15 and AE40 V14 motherboards. It includes an introduction to the product, hardware installation steps, driver installation instructions, BIOS configuration, and an appendix with additional resources.
The document also lists the standard accessories supplied with the board, detailed specifications such as chipset, CPU support, memory slots, expansion interfaces, and safety precautions for handling the hardware. This manual is written in Chinese.
| Chipset | AMD HUDSON D1+E350 / AMD HUDSON D1+E240 |
|---|---|
| Supported CPU | AMD E350/E240 APU |
| Memory | 2 DDR3 1066 MHz slots |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 1 × PCI |
| SATA Ports | 6 × SATA II (3 Gb/s) |
| Audio | Integrated 6‑channel digital audio controller |
| Network | Integrated Gigabit Ethernet (10/100/1000 Mbps) |
| USB Ports | 8 × USB 2.0 |
A 24‑pin ATX 12 V compatible power supply of at least 400 W is recommended to ensure sufficient power for the system.
You can clear the BIOS password by resetting the CMOS using the jumper as described in the “Jumpers Settings” section of Chapter 2.
