This document is a user manual for the A75A/A55A series motherboard. The manual provides information on the environmental usage period, labeling of toxic substances, and hazardous elements in the product. It also includes cautions and warnings, a list of components and their hazardous substance content, and a declaration of conformity to relevant specifications.

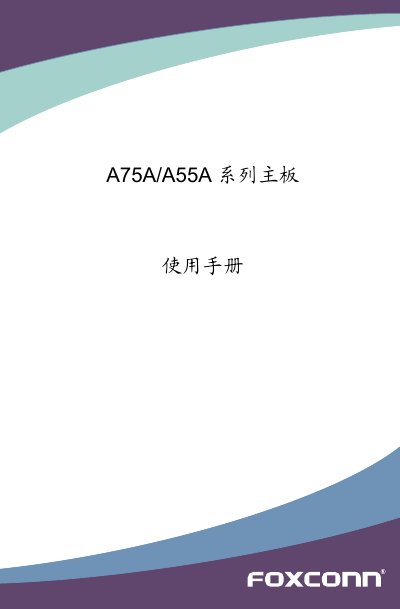

This manual covers the Foxconn A75A/A55A series ATX motherboard, detailing product specifications, layout, and back‑panel connectors. It includes safety warnings, environmental usage period information, and compliance declarations.
The guide walks users through hardware installation (CPU, memory, expansion cards), BIOS configuration, optical‑disc software setup, and RAID creation, plus troubleshooting and support resources. This manual is written in Chinese.
| Form factor | ATX (12.0" x 9.0") |
|---|---|
| Memory slots | 4 x 240‑pin DDR3 |
| Maximum memory | 16 GB DDR3 (dual‑channel) |
| Expansion slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 3 × PCI |
| Supported operating systems | Microsoft Windows 7, Vista, XP |
The manual indicates that the numeric value shown on the pollution‑control label represents the product’s environmental usage period under normal conditions.
The motherboard supports ten USB 2.0 ports.
It can accommodate up to 16 GB of DDR3 memory in dual‑channel configuration.
