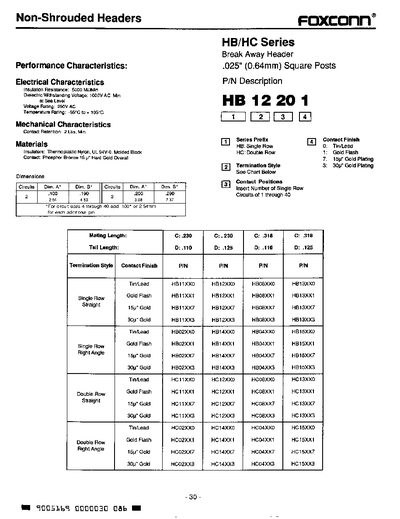

The Foxconn HB/HC Series non‑shrouded headers are presented with their performance characteristics, including electrical and mechanical parameters. Key data such as insulation resistance, dielectric withstanding voltage, voltage and temperature ratings are listed.
Material construction, dimensions, contact finishes and termination styles are also described, along with pin‑to‑pin size increments for larger series. The sheet provides part numbers for single‑row and double‑row configurations, as well as straight and right‑angle variants.
| Dielectric Withstanding Voltage | 1000V AC min |
|---|---|
| Temperature Rating | -55°C to +105°C |
| Contact Retention | 2 LOs min |
| Mating Length | c: 230 |
| Tail Length | D: .110 |
The headers operate from –55 °C to +105 °C.
