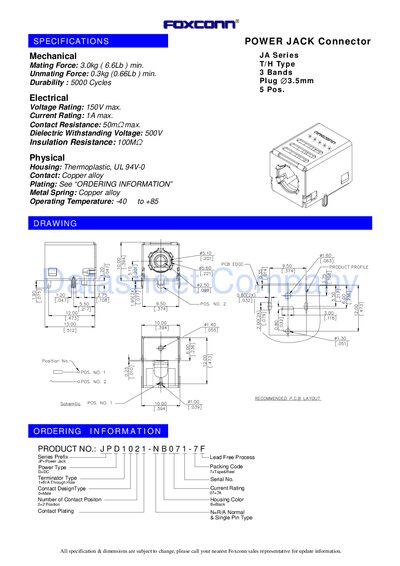

The Foxconn JA Series Power Jack datasheet lists mechanical and electrical specifications, including voltage, current, mating force, and operating temperature.
This datasheet provides the mechanical and electrical characteristics of the Foxconn JA Series Power Jack, a 3.5 mm 5‑position connector. It includes details such as mating and unmating forces, durability, and material specifications.
Ordering information, contact plating options, and recommended handling procedures are also included, with a note that all specifications may change and customers should contact their Foxconn sales representative for the latest data.
| Mechanical Mating Force | 3.0 kg (6.6 lb) min |
|---|---|
| Unmating Force | 0.3 kg (0.66 lb) min |
| Durability | 5000 cycles |
| Electrical Voltage Rating | 150 V max |
| Current Rating | 1 A max |
| Contact Resistance | 50 mΩ max |
| Dielectric Withstanding Voltage | 500 V |
| Operating Temperature | -40 °C to +85 °C |
The maximum voltage rating is 150 V.
It is rated for 5000 mating cycles.
The connector operates from –40 °C to +85 °C.
