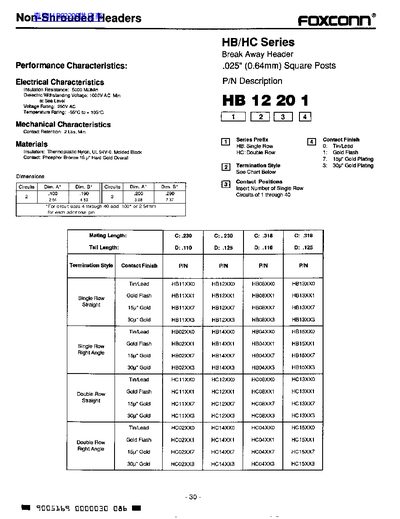

The Foxconn HB/HC Series header datasheet provides key electrical and mechanical characteristics for both single‑row (HB) and double‑row (HC) connectors. It lists performance data such as insulation resistance, dielectric voltage, temperature range, and contact retention, as well as material details for insulators and contacts.
The document also includes dimensional tables, pin count options, and part number listings for various finish and termination styles, helping designers select the appropriate header for their applications.
| Insulation Resistance | 5000 MΩ Min |
|---|---|
| Dielectric Withstanding Voltage | 1000 V AC Min |
| Voltage Rating | 250 V AC |
| Temperature Rating | -55°C to +105°C |
| Contact Retention | 2 LoS Min |
| Insulator Material | Thermoplastic Nylon, UL 94‑0, Molded Black |
| Contact Material | Phosphor Bronze 15 µ" Hard Gold |
| Single‑Row Contact Finish | Tin/Lead |
| Double‑Row Contact Finish | Gold Flash |
The insulation resistance is rated at 5000 MΩ minimum.
They are rated for 250 V AC.
They operate from –55 °C up to +105 °C.
The contacts are made of phosphor bronze with a 15 µ" hard gold finish.
