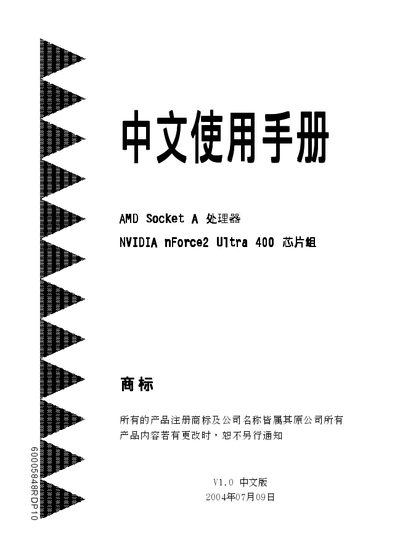

This manual introduces the installation, use and maintenance of the M60005848RDI10 mainboard with AMD Socket A processor and NVIDIA nForce2 400 chip set.
This manual provides detailed information for the nForce2 Ultra 400 motherboard built for AMD Socket A processors. It includes a list of package contents, hardware specifications, and step‑by‑step installation instructions.
The guide also covers BIOS configuration, S‑ATA RAID setup, audio/video connector usage, and includes appendices for BIOS updates and EEPROM handling. This manual is written in Chinese.
| CPU Socket | 462‑pin Socket A |
|---|---|
| Supported CPUs | AMD Athlon XP 1500+‑3000+ and AMD Barton 2500+‑3200+ |
| Memory Type | DDR‑200/266/333/400, up to 3 GB, 128‑bit dual‑channel |
| Chipset | NVIDIA nForce2 Ultra 400 with RAID MCP |
| Integrated LAN | Realtek RTL8201CL PHY, 10/100 Mbps |
| USB Ports | 8 × USB 2.0 |
| SATA Ports | 2 × SATA‑133 |
The board includes eight USB 2.0 ports.
It supports DDR‑200/266/333/400 memory up to 3 GB with 128‑bit dual‑channel architecture.
Compatible CPUs are AMD Athlon XP (1500+‑3000+) and AMD Barton (2500+‑3200+).
Yes, it includes an nForce2 Ultra 400 RAID MCP controller.
