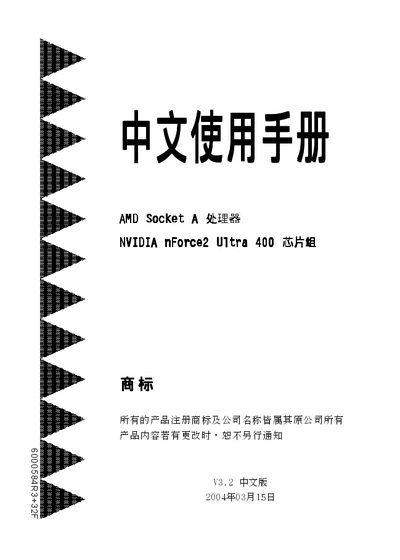

AMD nForce2 Ultra 400 Motherboard User Manual

This document describes the features and characteristics of AMD Socket A processors and NVIDIA nForce2 Ultra 400 chipsets.

Brand: AMD
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 76
File format: PDF
File size: 11.1 MB
Published: 05 April, 2012
Updated: 29 September, 2023
Model: NFORCE2
MD5 checksum: 09B2C1A01B6E2424FEB5392FDBEC1053
PDF: AMD nForce2 Ultra 400 Motherboard User Manual PDF

About this manual

This manual provides detailed information for the AMD Socket A motherboard equipped with the NVIDIA nForce2 Ultra 400 chipset. It includes packaging contents, specifications, installation steps, BIOS settings, and RAID configuration instructions.

The document also describes connector layouts, power‑supply requirements, and troubleshooting tips, helping users set up the board in Windows 98/ME/XP/2000 environments and configure SATA RAID arrays. This manual is written in Chinese.

What's inside

Packaging Contents
Specifications
Installation
BIOS Settings
S‑ATA RAID Configuration
Audio/Video Connections
ATX Power Supply Requirements
Connector Layout
Troubleshooting

Specifications

Form factor	ATX
Supported CPUs	AMD Socket A processors
Minimum power supply	250 W
Supported operating systems	Windows 98SE/ME/XP/2000

Frequently asked questions

Which BIOS power‑saving mode is supported?

The motherboard supports the STR (Suspend To RAM) ACPI S3 power‑saving mode.
