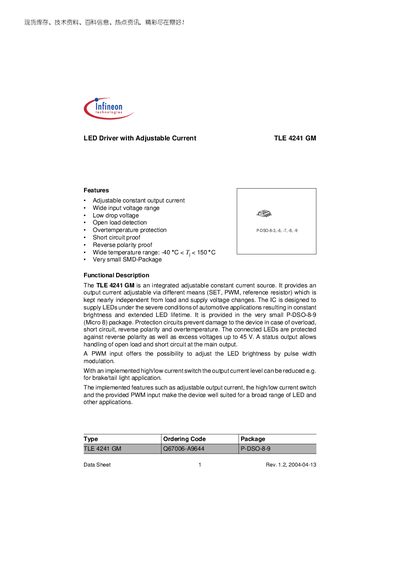

The product is an adjustable constant current source for LEDs. It provides an output current adjustable via different means (SET, PWM, reference resistor) which is kept nearly independent from load and supply voltage changes. The IC is designed to supply LEDs under the severe conditions of automotive applications resulting in constant brightness and extended LED lifetime. It is provided in the very small P-DSO-8-9 (Micro 8) package. Protection circuits prevent damage to the device in case of overload, short circuit, reverse polarity and overtemperature. The connected LEDs are protected against reverse polarity as well as excess voltages up to 45 V. A status output allows handling of open load and short circuit at the main output. A PWM input offers the possibility to adjust the LED brightness by pulse width modulation. With an implemented high/low current switch the output current level can be reduced e.g. for brake/tail light application. The implemented features such as adjustable output current
The TLE4241 GM is an integrated adjustable constant‑current LED driver supplied in a very small P‑DSO‑8‑9 (Micro‑8) package. It offers a wide input voltage range, adjustable output current via SET pin, PWM input, or a reference resistor, and includes overtemperature, short‑circuit, reverse‑polarity, and open‑load protection.
The document provides pin definitions, a typical application circuit, absolute maximum ratings, operating ranges, and detailed electrical characteristics such as output current levels, drop voltage, and PWM input thresholds.
| Input voltage range | 4 V to 45 V |
|---|---|
| Output current (low‑current mode) | 6.7 mA to 8.4 mA (typ) |
| Output current (high‑current mode) | 47 mA to 58.5 mA (typ) |
| Package | P‑DSO‑8‑9 (Micro‑8) |
| Reference resistor range | 7 kΩ–100 kΩ (high), 4.7 kΩ–18 kΩ (low) |
The device operates from 4 V up to 45 V.
Output current can be adjusted via the SET pin, a reference resistor on the REF pin, or by changing the PWM duty cycle.
