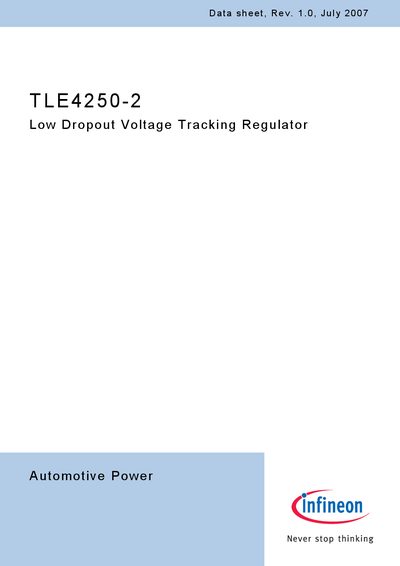

The TLE4250-2 is a monolithic integrated low dropout voltage tracker in a tiny SMD package PG-SCT595-5 with excellent thermal resistance. It is designed to supply off-board loads (e.g. sensors) in automotive environment.
The TLE4250-2 is a monolithic low‑dropout voltage tracking regulator offered in a tiny SMD package (PG‑SCT595‑5). It is intended for automotive off‑board loads such as sensors and includes integrated protection features like reverse‑polarity, short‑circuit, and over‑temperature protection.
The document details the device’s functional range, absolute maximum ratings, thermal resistance, and electrical characteristics, including output current capability, input voltage limits, and performance graphs for tracking accuracy and dropout voltage.
| Output Current Capability | 50 mA |
|---|---|
| Output Voltage Range | -1 V to 40 V |
| Power Supply Ripple Rejection (PSRR) | 48 dB |
The device can drive loads up to 50 mA.
