TLE 6228 GP is a quad channel low side switch with short circuit protection, overtemperature protection, overvoltage protection. This product is used in various resistive and inductive loads, such as relays and electromagnetic valves.
The TLE6228 GP is a smart quad‑channel low‑side switch designed for automotive and industrial applications such as ABS, power‑train systems, solenoid control, and robotic controls. Each channel provides short‑circuit, over‑temperature, and over‑voltage protection, and includes a separate diagnostic pin for fault monitoring.

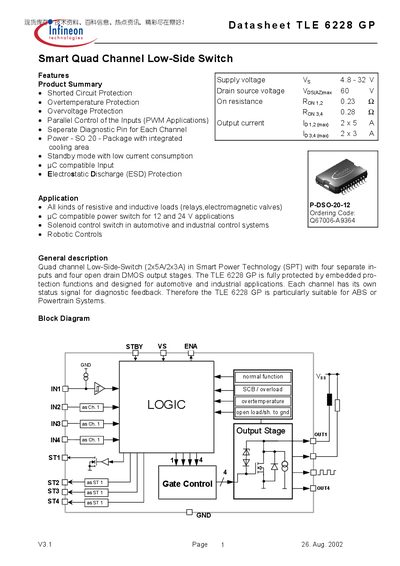

The datasheet details the device’s pin configuration, maximum ratings, electrical characteristics, standby behavior, and diagnostic functions, along with package dimensions and ordering information.
| Supply voltage (Vs) | 4.8 V – 32 V |
|---|---|
| Output current per channel | 2 A (channels 1‑2), 3 A (channels 3‑4) |
| On‑resistance (Ron) channel 1‑2 | 0.23 Ω typ |
| Standby current | ≈10 µA |
| Overtemperature shutdown threshold | 170 °C – 200 °C |
| ESD protection voltage (human‑body model) | 2000 V |
It can drive all kinds of resistive and inductive loads, such as relays and electromagnetic valves.
The device provides four independent low‑side switch channels.
