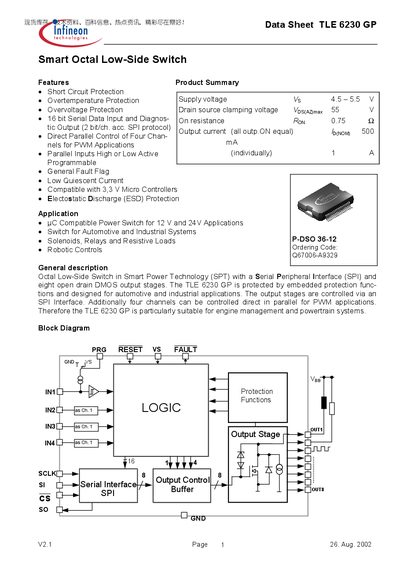

The TLE 6230 GP is an Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. It is protected by embedded protection functions and designed for automotive and industrial applications.
The TLE6230 GP is an octal low‑side power switch designed for automotive and industrial applications. It provides SPI‑controlled eight DMOS output stages with diagnostic feedback and multiple protection functions such as short‑circuit, overtemperature, overvoltage and ESD protection.
The device operates from a 45‑55 V supply, delivers up to 500 mA per channel, and is rated for -40 °C to +150 °C operation. It is supplied in a P‑DSO 36‑12 package and includes features like programmable parallel inputs, low quiescent current and a 16‑bit serial interface.
| Supply Voltage (Vs) | 45‑55 V |
|---|---|
| On Resistance (Ron) | 0.75 Ω |
| Continuous Drain‑Source Voltage (Vos) | 40 V |
| Operating Temperature Range | -40 °C to +150 °C |
| Package | P‑DSO 36‑12 |
The device operates from 45 V to 55 V supply voltage.
It provides eight independent low‑side power switches (octal).
