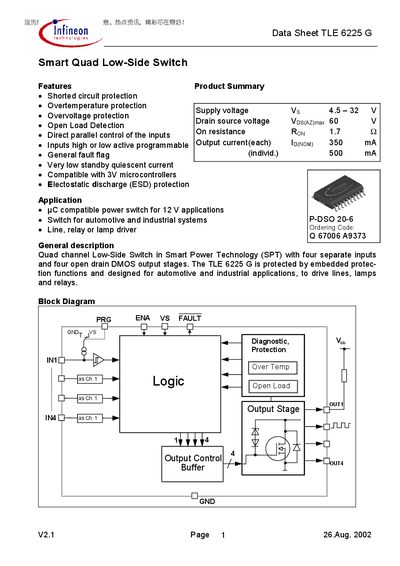

TLE 6225 G is a four-channel low-side switch in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. The device is protected by embedded protection functions and is designed for automotive and industrial applications, to drive lines, lamps and relays.
The TLE6225G is a quad‑channel low‑side switch in Infineon's Smart Power Technology. It integrates four independent DMOS output stages with built‑in protection functions such as short‑circuit, over‑temperature, over‑voltage, open‑load detection and ESD protection, making it suitable for automotive and industrial applications.
The datasheet provides detailed electrical characteristics, pin descriptions, maximum ratings, typical performance curves, timing diagrams and package information, along with a diagnostic table that explains the behavior of the ENA, PRG and FAULT pins.
| On‑resistance (Ron) | 1.7 Ω |
|---|---|
| Fault current limit | 500 mA |
It is a quad‑channel low‑side switch, providing four independent output channels.
