The TLE 4250 G is an integrated circuit designed for use in automotive electronics to supply sensors under severe conditions. It has a rated voltage of 40 V, an output current of 50 mA, a low voltage drop and very low standby current consumption. In addition, it has overload, short circuit and reverse polarity protection functions.
The TLE 4250 G is a monolithic low‑drop voltage tracker designed for automotive and low‑power battery applications. It offers a tracking tolerance of ±0.5 %, 50 mA output current, and protection against overload, short‑circuit, and reverse polarity.

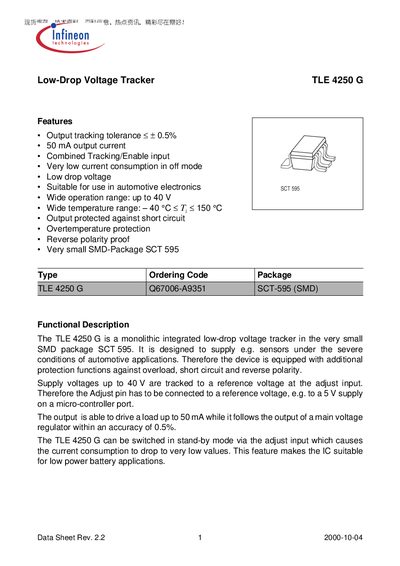

The datasheet details the pin configuration, absolute maximum ratings, operating ranges, electrical characteristics, application circuit, stability region, and package dimensions for the SCT‑595 surface‑mount device.
| Output tracking tolerance | < +0.5 % |
|---|---|
| Maximum output current | 50 mA |
| Input voltage range | 4 V – 40 V |
| Adjust input voltage range | 2.5 V – 36 V |
| Drop voltage (typical) | 100 mV – 300 mV at 10 mA |
| Quiescent current (typical) | 3.0 mA |
| Operating temperature range | –40 °C to 150 °C |
| Package type | SCT‑595 (very small SMD) |
The device can drive up to 50 mA of load current.
It tracks the output voltage with a tolerance of less than ±0.5 %.
The component is rated for temperatures from –40 °C to 150 °C.
It accepts an input voltage between 4 V and 40 V.
