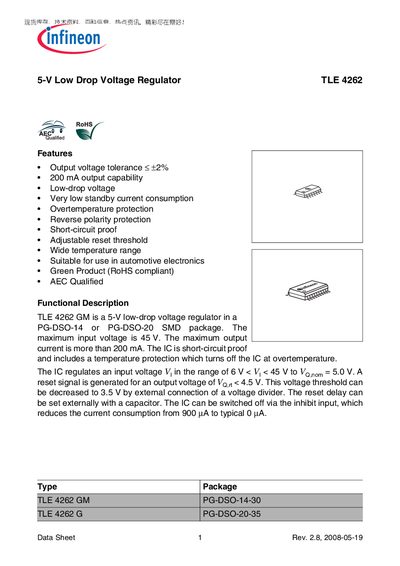

this document is the datasheet of tle4262, which introduces the features and characteristics of the product, including output voltage, output current, standby current, overtemperature protection, reverse polarity protection, short circuit protection, adjustable reset threshold, wide temperature range
The TLE 4262 is a 5‑V low‑drop voltage regulator offered in PG‑DSO‑14 and PG‑DSO‑20 SMD packages. It regulates an input voltage between 6 V and 45 V to a stable 5 V output, providing features such as output voltage tolerance, low standby current, over‑temperature, reverse‑polarity and short‑circuit protection, and an adjustable reset threshold.
The device includes a pin‑out with reset output, inhibit input, and adjustable reset threshold pins. Electrical characteristics include a typical output voltage of 5.00 V, maximum output current of 200 mA, drop voltage around 0.35 V, and input voltage range of 5.2 V to 45 V. The regulator can be switched off via the inhibit input, reducing standby current to about 0 µA.
| Maximum output current | 200 mA |
|---|---|
| Input voltage range | 5.2 V – 45 V |
The device can deliver more than 200 mA of output current.
It operates with an input voltage from 6 V up to 45 V.
