The TLE 4208 is a fully protected Quad-Half-Bridge-Driver designed specially for automotive and industrial motion control applications. It can drive up to 3 motors with a continuous output current of up to 0.8A. The driver has very low current consumption in stand-by mode, low saturation voltage, and built-in protection features. It is built using Siemens' bipolar high voltage power technology DOPL and is suitable for DC motor management applications.
The TLE4208 is a fully protected Quad‑Half‑Bridge driver designed for automotive and industrial motion‑control applications. It integrates four half‑bridges that can be used as two dual‑half‑bridges to drive up to three DC motors.

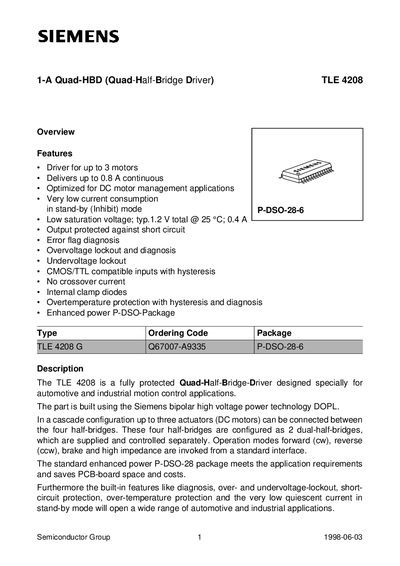

The document provides detailed pin definitions, electrical characteristics, operating ranges, protection functions and package information for designers and engineers.
| Continuous output current | 0.8 A |
|---|---|
| Typical saturation voltage | 1.2 V @ 25 °C |
The driver can deliver up to 0.8 A continuous current.
The device contains four half‑bridges, arranged as two dual‑half‑bridges that can be driven separately.
