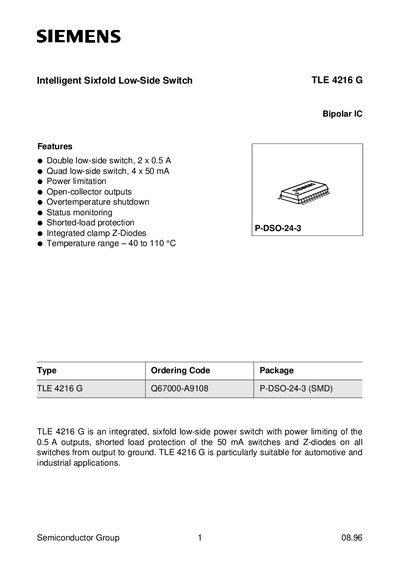

TLE 4216 G is a Texas Instruments integrated sixfold low-side power switch with power limiting of the 0.5 A outputs, shorted load protection of the 50 mA switches and Z-diodes on all switches from output to ground. TLE 4216 G is particularly suitable for automotive and industrial applications.
The TLE4216G is an integrated sixfold low‑side power switch IC designed for automotive and industrial applications. It provides two 0.5 A switches and four 50 mA switches, each with built‑in power‑limiting, shorted‑load protection, and integrated clamp Z‑diodes to handle inductive load voltage spikes.
The device includes TTL‑compatible Schmitt‑trigger inputs, open‑collector NPN output stages, and a status output that reports overload, overtemperature, and other fault conditions. It operates over a supply voltage range of 5.2 V to 30 V and an ambient temperature range of –40 °C to 110 °C, with thermal shutdown at 170 °C.
