TLE4262G is a 5V low-drop voltage regulator with a maximum input voltage of 45V and a maximum output current of 200mA.

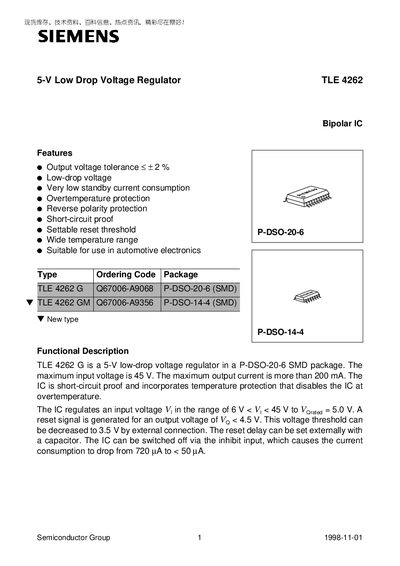

The TLE 4262 is a bipolar IC voltage regulator offered in P‑DSO‑20‑6 and P‑DSO‑14‑4 surface‑mount packages. It regulates an input voltage between 6 V and 45 V down to a stable 5 V output, with a reset threshold that can be adjusted via an external resistor.
Key features include low‑drop operation, very low standby current, overtemperature, reverse polarity and short‑circuit protection, as well as an inhibit input for shutdown. The device is designed for use in automotive electronics and provides a reset output and configurable reset delay.
| Maximum input voltage | 45 V |
|---|---|
| Maximum output current | >200 mA |
| Output voltage (typical) | 5.0 V |
| Package (G version) | P‑DSO‑20‑6 (SMD) |
| Package (GM version) | P‑DSO‑14‑4 (SMD) |
| Protection features | Overtemperature, reverse polarity, short‑circuit |
| Inhibit input | TTL‑compatible, low‑active |
The maximum input voltage is 45 V.
The regulator provides a 5.0 V output.
It can supply more than 200 mA of output current.
It includes overtemperature, reverse polarity, and short‑circuit protection.
