TLE 4260 is a 5V low-drop fixed-voltage regulator with features of low-drop voltage, very low quiescent current, low starting current consumption, integrated temperature protection, and reverse polarity protection. It is suitable for automotive electronics and other applications.

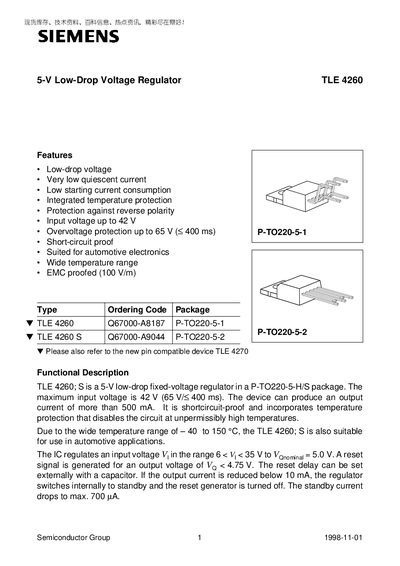

The TLE 4260 is a 5‑V low‑drop voltage regulator offered in a P‑TO220‑5 package. It features very low quiescent current, short‑circuit proof operation, integrated temperature protection, reverse‑polarity protection, and is qualified for automotive electronics with a wide temperature range.
The device operates from an input voltage of 6 V to 35 V (up to 42 V continuously, 65 V for <400 ms) and can supply more than 500 mA of output current. Detailed electrical characteristics, pin definitions, and package dimensions are provided in the datasheet.
