SIEMENS TLE 4269 5-V Low-Drop Fixed Voltage Regulator handbook

TLE 4269 is a voltage regulator with a fixed 5V output, with a maximum operating voltage of 45V and an output capability of 150mA. It has short circuit protection and thermal shutdown, which switches off the output when the junction temperature exceeds 150°C. The reset threshold voltage can be decreased by external connection of a voltage divider, and the reset delay time can be set by an external capacitor. The product also has a low voltage warning function.

Brand
Siemens
File format
PDF
Published
05 April, 2012
Updated
29 September, 2023
MD5 checksum
6BB5DC20B73D9B259D44D7CB5576676C
PDF

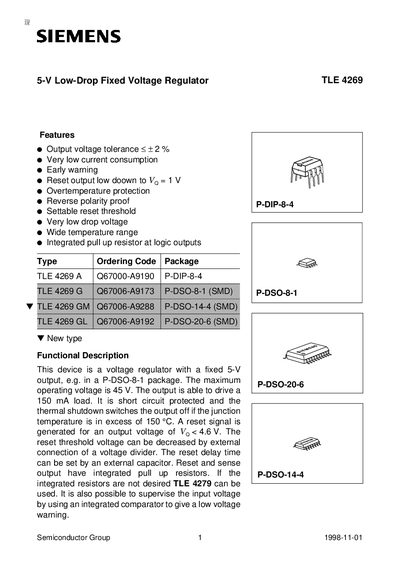

SIEMENS TLE 4269 5-V Low-Drop Fixed Voltage Regulator handbook PDF
Download PDF
