TLE 4207 is a dual half-bridge driver from Texas Instruments (TI) that is optimized for automotive and industrial motion control applications. The part is built using TI's bipolar high voltage power technology DOPL. The motor can be directly connected between the half bridges. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from a standard interface. The standard enhanced power P-DSO-14 package meets the application requirements and saves PCB board space and costs. Furthermore, built-in features such as diagnostics, over- and undervoltage lockout, short-circuit protection, over-temperature protection, and very low quiescent current in standby mode will open a wide range of automotive and industrial applications.

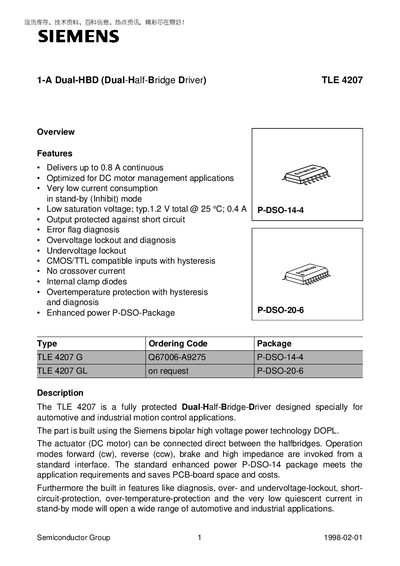

The Siemens TLE4207 is a fully protected dual‑half‑bridge driver intended for automotive and industrial motion‑control applications. It integrates short‑circuit protection, over‑ and undervoltage lockout, over‑temperature protection and error‑flag diagnosis, while offering low standby current.
The document provides detailed pin definitions, electrical characteristics, operating ranges, package outlines and typical performance parameters such as continuous output current, saturation voltage and supply voltage limits.
