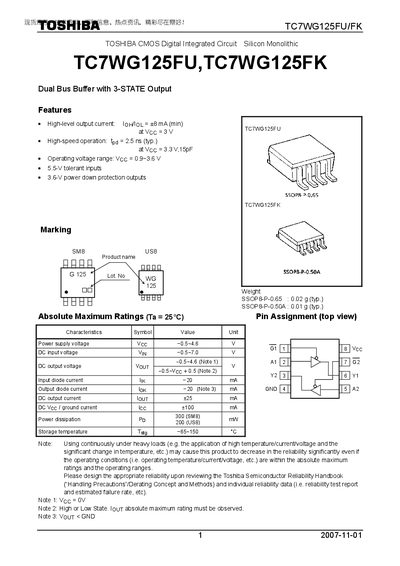

TC7WG125FU/FK is a dual bus buffer with 3-STATE output produced by Toshiba
The TC7WG125FU/FK is a dual‑bus buffer with 3‑state outputs, offering high‑level output current of up to +8 mA and a typical propagation delay of 2.5 ns. It operates from a supply voltage of 0.9 V to 3.6 V and is suitable for general electronics applications such as computers, office equipment and industrial robotics.
The device is supplied in SSOP8‑P‑0.65 or SSOP8‑P‑0.50A packages, with typical dimensions of 2.94 mm × 0.65 mm × 0.65 mm and a weight of 0.02 g (typ.). Electrical specifications include a maximum DC output current of 25 mA, power dissipation of 200 mW, and defined AC characteristics for various load conditions. The datasheet also lists restrictions on use in safety‑critical or high‑reliability systems.
| High‑level output current | +8 mA (min) |
|---|---|
| Propagation delay (tpd) | 2.5 ns (typ.) |
| Operating voltage range (Vcc) | 0.9 V ~ 3.6 V |
| Input voltage (VIN) | 0 V ~ 5.5 V |
| Maximum DC output current | +25 mA |
| Power dissipation | 200 mW |
| Package weight | 0.02 g (typ.) |
The device can source up to +25 mA of DC output current.
The recommended operating voltage range is 0.9 V to 3.6 V.
