TLP116 is a photocoupler launched by Toshiba, which features anti-phase logic (totempole output), small package, high input threshold current, low propagation delay time, high switching speed, high common mode transient immunity and high isolation voltage.
The TLP116 is a GaAs LED‑photodetector optocoupler that combines a high‑gain, high‑speed photodetector with a light‑emitting diode in an MFSOP6 package. It is intended for use in plasma display panels, factory automation, and other general electronics applications where fast isolation is required.

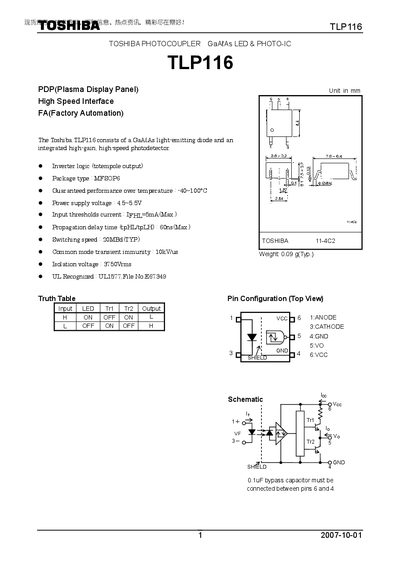

The document lists absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, test circuits, and restrictions on product use. It also includes typical performance graphs and notes on reliability and handling.
| Supply voltage (VCC) | 4.5 ~ 5.5 V |
|---|---|
| Switching speed | 20 MBd (typ) |
| Forward current (IF) | 20 mA (absolute max) |
| Output current | 10 mA |
| Isolation resistance | 1 × 10¹⁰ Ω |
The recommended supply voltage is 4.5 V to 5.5 V.
The absolute maximum forward current is 20 mA.
