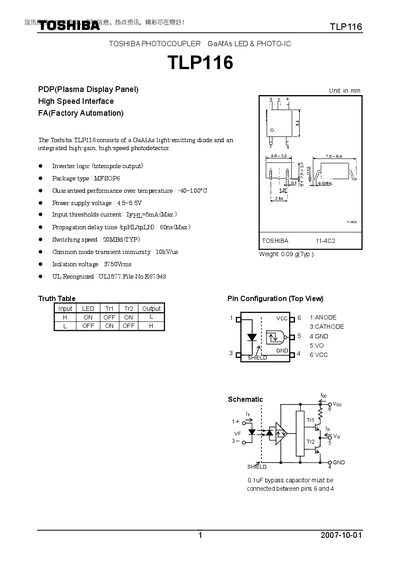

TLP116 is a photocoupler manufactured by Toshiba, which consists of a GaAℓAs LED and a high-gain, high-speed photodetector. It is suitable for inverter logic (totempole output) applications, with high speed interface, wide temperature range, and isolation voltage.
The TLP116 is a GaAs LED phototransistor optocoupler that combines a high‑gain photodetector with a fast inverter logic output. It is supplied in an MFSOP6 package and is intended for use in plasma display panels, factory automation, and other general electronics applications.
Key specifications include a supply voltage of 4.5‑5.5 V, a forward current rating of 20 mA, propagation delay times up to 60 ns, and an isolation voltage of 3.75 kVrms. The device operates over a temperature range of –40 °C to 100 °C and meets UL1577 certification.
