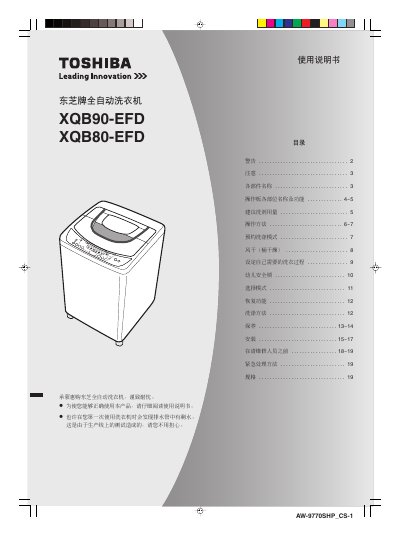

This document provides instructions and precautions for the use of the Toshiba fully automatic washing machine model AW-9770SHP_CS-1. It warns of certain operations that may cause personal injury or damage to the machine. It also provides detailed information on the names and functions of various components, recommended detergent dosage, operating methods, scheduling washing modes, air drying and drum drying, customizing laundry processes, child safety lock, mode selection, restore function, washing methods, maintenance, installation, and emergency handling methods.
This manual contains safety warnings and general information for the Toshiba XQB90‑EFD and XQB80‑EFD fully‑automatic washing machines. It explains precautions such as keeping children away, not touching the drum while it rotates, using the correct power source, and unplugging before service.
The guide details installation of water and power connections, operation panel functions, wash programs, water‑level settings, detergent usage, drying programs, and troubleshooting tips. It also lists technical specifications such as dimensions, water consumption, and pressure requirements. This manual is written in Chinese.
| Type | Fully automatic washing machine |
|---|---|
| Rated operation time | 55 minutes (standard) |
| Wash method | Turbine (涡旋式) |
| Standard water level (high) | 79 L (XQB90) / 77 L (XQB80) |
| Dimensions (W × D × H) | 645 mm × 593 mm × 1007 mm |
| Standard water usage | 180 L (XQB90) / 177 L (XQB80) |
| Dry load capacity | 8 kg |
| Water pressure range | 0.03 ~ 1 MPa |
Do not touch the drum while it is rotating, keep children away from the machine, do not modify or dismantle it, use the power source indicated on the nameplate, and unplug the machine before any service or repair.
Press the water‑level button; the corresponding indicator light will illuminate. If water is already in the drum before start, the highest‑level light will turn on.
