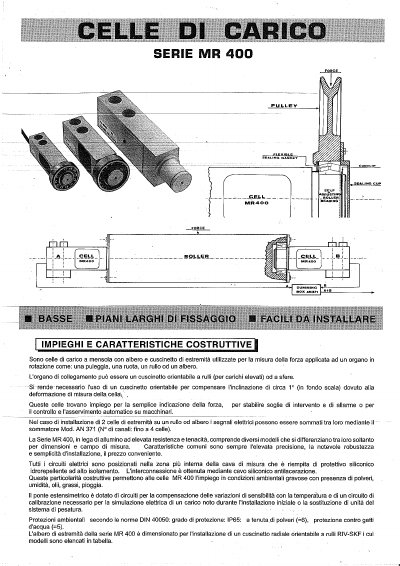

The DS Europe MR 400 series consists of high-strength aluminium alloy beam load cells with an end shaft and bearing. These cells are designed to measure force applied to rotating members such as pulleys, wheels, rollers, or shafts. They feature a self-adjusting roller bearing to compensate for tilt caused by measurement deformation.
| Full Scale Ranges | 0 to 100-220-330 kg; 0 to 550-1000 kg; 0 to 2-3.3 ton; 0 to 5 ton |
|---|---|
| Sensitivity | 2mV/V (typical) |
| Protection Degree | IP65 |
| Output Impedance | 350 Ohms (typical) |
| Operating Temperature Range | -15 to +75°C |
They are used for testing force applied to rotating members such as pulleys, wheels, rollers, or shafts.
A pivoted self-adjusting roller bearing (RIV-SKF) or ball bearing.
50% over Full Scale (FS).
