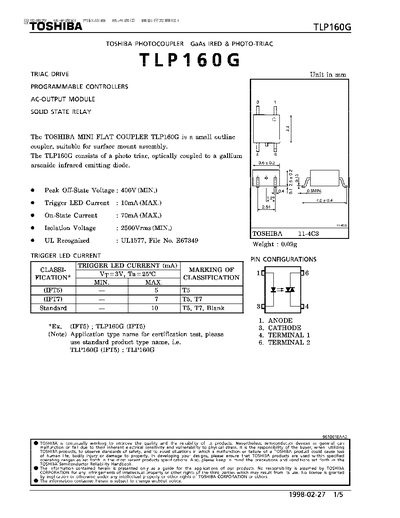

The TLP160G is a miniature surface‑mount phototransistor/triac coupler that combines a gallium‑arsenide infrared emitting diode with a photo‑triac. It is intended for use in solid‑state relay and programmable controller applications.
The document lists maximum ratings, recommended operating conditions, and detailed electrical characteristics such as forward current, isolation voltage, and temperature limits, enabling designers to integrate the device safely into their circuits.
| Peak Off‑State Voltage (VDRM) | 400 V (MIN) |
|---|---|
| Isolation Voltage | 2500 Vrms (MIN) |
| On‑State RMS Current (IT(RMS)) | 70 mA (MAX) |
| Forward Current (IF) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Junction Temperature (Tj) | 125 °C (MAX) |
| Storage Temperature Range | -55 °C to 125 °C |
| Supply Voltage (Vac) | 120 V |
The TLP160G has a minimum peak off‑state voltage of 400 V.
It guarantees at least 2500 Vrms isolation voltage.
The maximum on‑state RMS current is 70 mA.
