TOSHIBA Photocoupler GaAs Ired Photo Transistor TLP131 Manual(1)

TLP131 is a small outline coupler, suitable for surface mount assembly. It consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode. It has features such as 80V (min.) collector-emitter voltage, 50% (min.) current transfer ratio, 3750Vrms (min.) isolation voltage, etc. It is suitable for office machines, programmable controllers, telecommunication equipment, etc.

Brand
Toshiba
File format
PDF
Published
01 April, 2012
Updated
29 September, 2023
Model
TLP131
MD5 checksum
6832AC81ECCBF7E085E23856603860AB
PDF

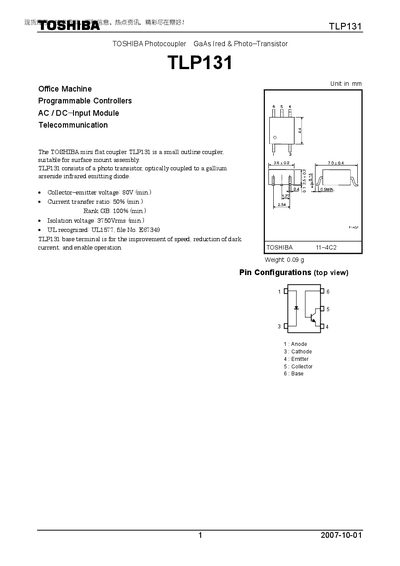

TOSHIBA Photocoupler GaAs Ired Photo Transistor TLP131 Manual(1) PDF
Download PDF
