This document mainly introduces the features and characteristics of TLP141G photocoupler, including rated voltage, current, temperature, etc., which is a photocoupler suitable for surface mounting.

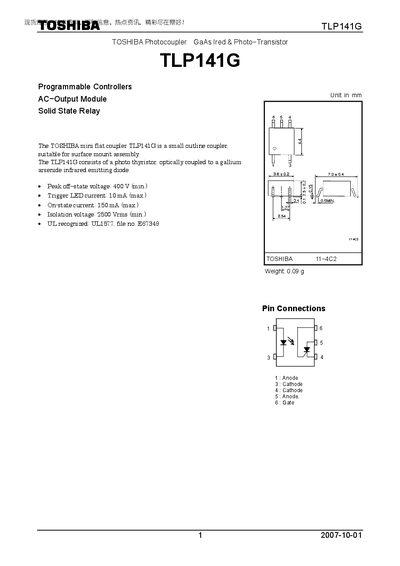

The TLP141G is a miniature surface‑mount photocoupler that combines a gallium‑arsenide infrared LED with a photo‑thyristor. It is supplied in a small outline package and is intended for general electronics applications such as computers, office equipment and industrial robotics.
The device is rated for a peak off‑state voltage of 400 V, on‑state current up to 150 mA, and an isolation voltage of 2500 Vrms. Absolute maximum ratings include a forward current of 50 mA and a peak forward voltage of 400 V. Recommended operating conditions specify a supply voltage up to 120 Vac, forward current 15‑25 mA, and operating temperature from –25 °C to 85 °C.
| Peak off‑state voltage | 400 V (min) |
|---|---|
| On‑state current | 150 mA (max) |
| Isolation voltage | 2500 Vrms (min) |
| Forward current (IF) | 50 mA (max) |
| Storage temperature range | -55 °C to 125 °C |
| Lead soldering temperature (10 s) | 260 °C |
| Supply voltage (VAC) | up to 120 Vac |
| Gate‑to‑cathode resistance (Rok) | 27 kΩ – 33 kΩ |
The isolation voltage is specified as 2500 Vrms minimum.
Recommended operating temperature is from –25 °C to 85 °C.
The absolute maximum forward current is 50 mA.
The device can be powered up to 120 Vac.
