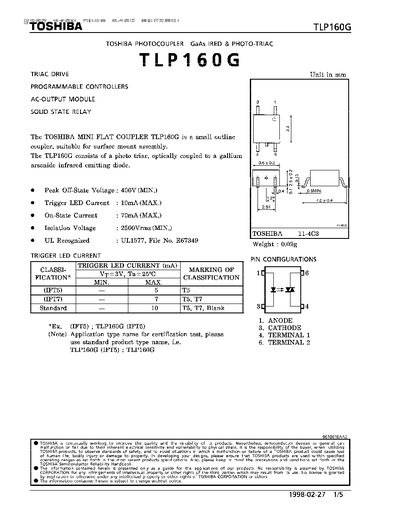

The TLP160G is a miniature surface‑mount phototransistor/triac coupler that combines a gallium arsenide infrared emitting diode with an optically coupled photo‑triac. It is intended for use in AC‑output modules, solid‑state relays, and programmable controllers.
The document lists the device's maximum ratings, individual and coupled electrical characteristics, and recommended operating conditions, including voltage, current, temperature, and isolation specifications needed for reliable circuit design.
| Peak Off‑State Voltage | 400 V (MIN) |
|---|---|
| On‑State RMS Current | 70 mA (MAX) |
| Forward Current (IF) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Junction Temperature (Tj) | 125 °C |
| Supply Voltage (Vac) | 120 V AC |
The peak off‑state voltage is specified as 400 V minimum.
The device can handle up to 70 mA RMS on‑state current.
A supply voltage of 120 V AC is recommended.
