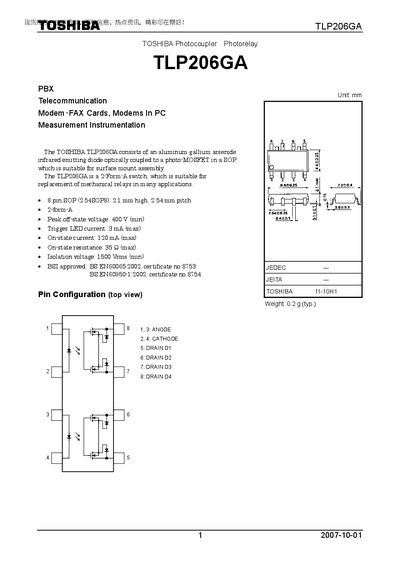

TLP206GA is a photocoupler produced by TOSHIBA. It consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP, which is suitable for surface mount assembly. TLP206GA is a 2-Form-A switch, which is suitable for replacement of mechanical relays in many applications.
The TLP206GA is a 2‑Form‑A photocoupler that combines an infrared emitting diode with a photo‑MOSFET in an 8‑pin SOP package. It is intended for surface‑mount assembly and can replace mechanical relays in many applications.
The document lists absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics such as forward voltage, on‑state resistance, isolation voltage, and switching times, along with safety and usage restrictions.
| Peak off‑state voltage | 400 V (min) |
|---|---|
| Trigger LED current | 3 mA (max) |
| Isolation voltage | 1500 Vrms (min) |
| Supply voltage Vpp (max) | 320 V |
| Weight | 0.2 g (typ.) |
The maximum off‑state voltage is 400 V (minimum rating).
The recommended operating temperature range is –20 °C to 65 °C.
The isolation voltage rating is 1500 Vrms (minimum).
