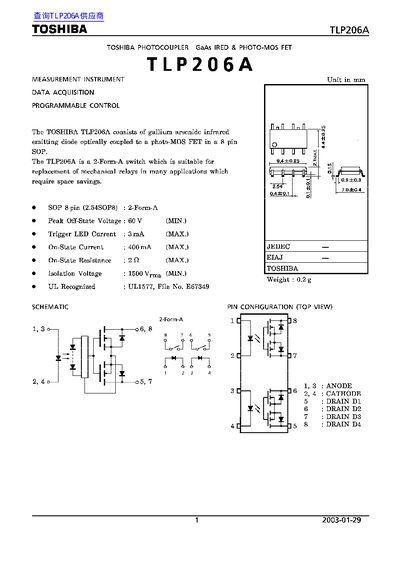

The TLP206A is a gallium‑arsenide infrared emitting diode optically coupled to a photo‑MOS FET in an 8‑pin SOP package. It is a 2‑Form‑A switch intended to replace mechanical relays where space savings are required.
The document lists detailed electrical specifications such as off‑state voltage, on‑state current, isolation voltage, and recommended operating conditions, as well as restrictions on product use for safety‑critical applications.
| Peak Off‑State Voltage | 60 V (MIN) |
|---|---|
| Trigger LED Current | 3 mA (MAX) |
| On‑State Current | 400 mA (MAX) |
| On‑State Resistance | < 20 mΩ (MAX) |
| Isolation Voltage | 1500 V rms (MIN) |
| Forward Current (Ip) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Junction Temperature (Tj) | 125 °C |
| Supply Voltage (VppD) | 48 V |
| Operating Temperature (Topr) | -20 °C to 65 °C |
The device is rated for a peak off‑state voltage of 60 V (minimum).
It has an isolation voltage rating of 1500 V rms (minimum).
The recommended operating temperature range is –20 °C to 65 °C.
The forward current (Ip) is specified as 50 mA.
