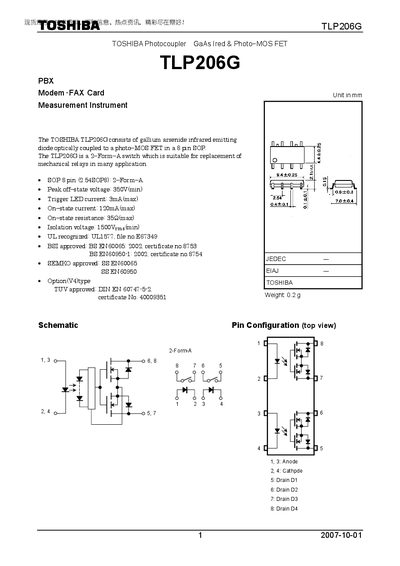

TLP206G is a TOSHIBA photocoupler consisting of a gallium arsenide infrared emitting diode and a photo-MOS FET. It is a 2-Form-A switch suitable for many applications. It has a peak off-state voltage of 350V, trigger LED current of 3mA, on-state current of 120mA, on-state resistance of 35Ω, and isolation voltage of 1500Vrms. In addition, it is recognized by UL, approved by BSI, SEMKO, and TUV.
The TLP206G is a GaAs infrared emitting diode optically coupled to a photo‑MOS FET in an 8‑pin SOP package. It functions as a 2‑Form‑A solid‑state switch suitable for replacing mechanical relays in many applications.
The document lists absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, isolation and switching specifications, and restrictions on product use. Designers can use these data to ensure reliable operation within the specified temperature, voltage, and current limits.
| Peak off‑state voltage | 350 V (min) |
|---|---|
| On‑state current | 120 mA (max) |
| Isolation voltage | 1500 V (min) |
The device is rated for a peak off‑state voltage of 350 V (minimum).
The isolation voltage is specified as 1500 V (minimum) for AC, 1 min, 60 % RH.
