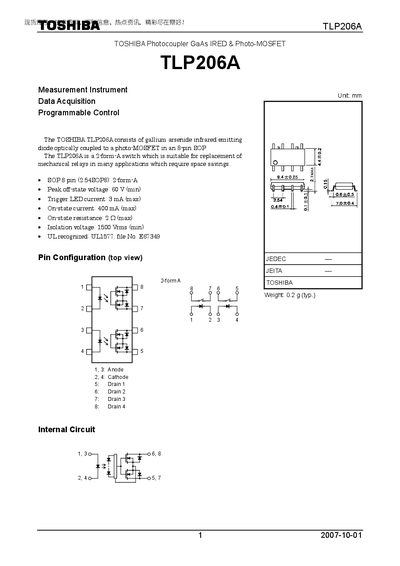

The TLP206A is a photocoupler produced by TOSHIBA. This product is packaged in an 8-pin SOP and has a 2-form-A switch function. It can be used to replace mechanical relays in many applications that require space savings.
The TLP206A is a GaAs infrared emitting diode optically coupled to a photo‑MOSFET in an 8‑pin SOP package. It functions as a 2‑form‑A switch suitable for replacing mechanical relays where space savings are required. The document lists absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics.
Key sections include absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, isolation and switching characteristics, as well as restrictions on product use. The information is intended for designers of general electronics applications and includes safety and reliability notes.
| Peak off‑state voltage | 60 V (min) |
|---|---|
| On‑state current | 400 mA (max) |
| Isolation voltage | 1500 V rms (min) |
The recommended supply voltage is up to 48 V.
The isolation voltage is rated at 1500 V rms for 1 minute (AC).
