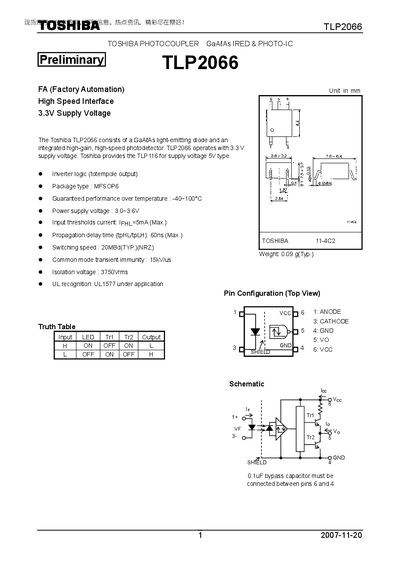

The TLP2066 is a GaAs infrared LED and high‑gain photodetector optocoupler packaged in an MFSOP6 package. It operates from a 3.0 V to 3.6 V supply, offers 3750 Vrms isolation, and features a typical propagation delay of 60 ns. The device includes a 0.1 µF bypass capacitor between pins 6 and 4 for stable operation.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical and switching characteristics, and test circuits. It also contains restrictions on product use, safety warnings, and compliance information for industrial and consumer electronics applications.
| Supply voltage | 3.0~3.6 V |
|---|---|
| Isolation voltage | 3750 Vrms |
| Propagation delay (max) | 60 ns |
| Output current | 10 mA |
The recommended supply voltage is 3.0 V to 3.6 V.
The device is rated for 3750 Vrms isolation voltage.
The maximum propagation delay is 60 ns.
It can source up to 10 mA of output current.
