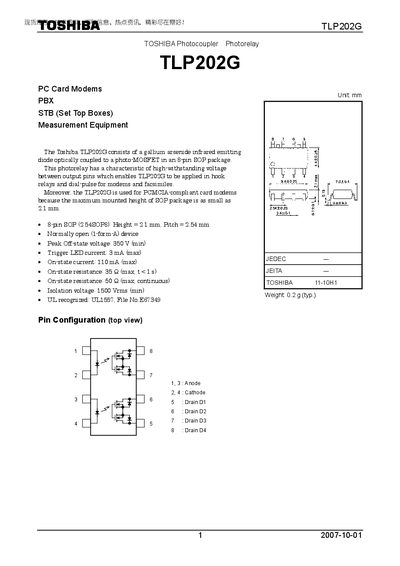

This document is the datasheet of TLP202G, which mainly introduces the functions, features, parameters, specifications, and application scenarios of the product.
The TLP202G is a gallium‑arsenide infrared emitting diode optically coupled to a photo‑MOSFET in an 8‑pin SOP package. It is intended for use in PCMCIA‑compliant card modems, PBX, set‑top boxes, measurement equipment and other general electronics applications.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical and isolation characteristics, switching performance, and restrictions on product use. Designers are advised to follow Toshiba’s reliability guidelines and to avoid unintended high‑risk applications.
| Package | 8‑pin SOP, 2.54 mm pitch, 2.1 mm height |
|---|---|
| Peak off‑state voltage | 350 V (min) |
| Isolation voltage | 1500 Vrms (min) |
| Trigger LED current | 3 mA (max) |
| Forward voltage (IF=10 mA) | 1.0 V – 1.3 V |
| Weight | 0.2 g (typ.) |
The peak off‑state voltage is specified as 350 V (minimum).
The recommended forward current range is 5 mA to 25 mA, typical 10 mA.
It is rated for at least 1500 Vrms isolation voltage (AC, 1 min, 60 % RH).
The device comes in an 8‑pin SOP package with a 2.54 mm pitch and 2.1 mm height.
