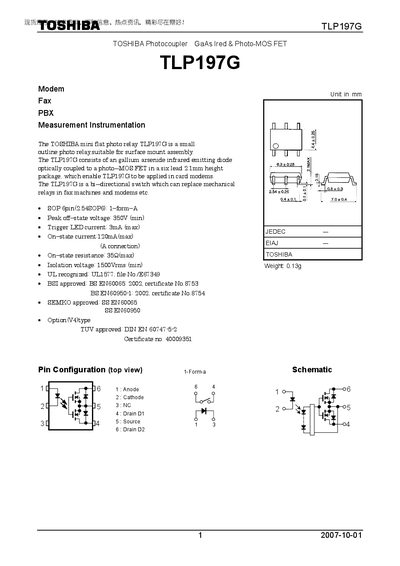

TOSHIBA TLP197G is a small outline photo relay from TOSHIBA, suitable for surface mount assembly. The TLP197G consists of a gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET in a six lead 2.1mm height package, which enable TLP197G to be applied in card modems. The TLP197G is a bi-directional switch which can replace mechanical relays in fax machines and modems etc.
The TLP197G is a miniature flat photo‑relay that combines a GaAs infrared LED with a photo‑MOS FET in a 6‑lead, 2.1 mm height SOP package. It is intended for surface‑mount applications such as fax machines, modems, and other equipment where a bi‑directional switch can replace mechanical relays.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical characteristics, isolation and switching performance, as well as handling precautions and restrictions on product use. Key parameters such as off‑state voltage, on‑state current, and isolation voltage are provided to aid designers in reliable circuit implementation.
