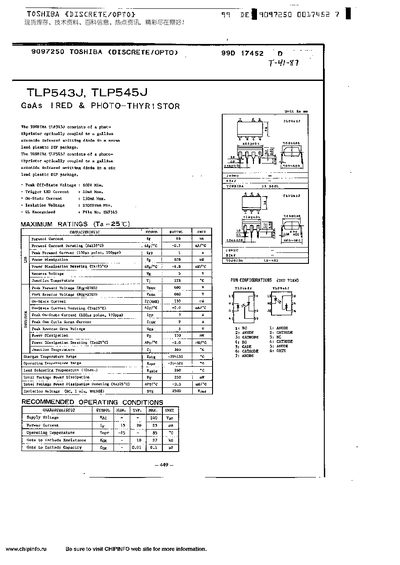

This document presents the key specifications for the Toshiba TLP543J and TLP545J optocouplers, including maximum voltage ratings, current limits, and thermal characteristics. It also details the pin layout and recommended operating conditions for reliable circuit integration.
The datasheet includes tables of individual and coupled electrical characteristics, isolation resistance, and typical forward and reverse voltage values, allowing designers to select the appropriate device for their applications.
| Peak Off-State Voltage | 600 V |
|---|---|
| Trigger LED Current (max) | 10 mA |
| Isolation Voltage (min) | 2500 V |
| Supply Voltage | 240 Vac |
The peak off-state voltage is 600 V.
It provides an isolation voltage of at least 2500 V.
A supply voltage of 240 Vac is specified.
