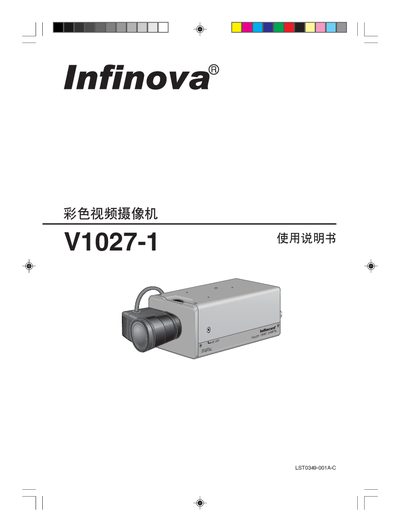

Infinova V1027-1 Color Video Camcorder User Manual

This manual describes the functions, operating methods, connection and installation of V1027-1 color video camera.

Brand: Infinova
Category: Monitoring Equipment
Document type: User Manual
Language: Chinese
Pages: 36
File format: PDF
File size: 1.6 MB
Published: 01 April, 2012
Updated: 30 September, 2023
MD5 checksum: 546A449DEEE4FF8FDDF8E83A6B106324
PDF: Infinova V1027-1 Color Video Camcorder User Manual PDF

About this manual

This manual covers safety precautions, installation procedures, and detailed operating instructions for the Infinova V1027-1 color video camcorder. It explains how to set up the camera, adjust video, ALC, white balance, motion detection, and other functional menus.

Technical specifications, power requirements, environmental limits, and maintenance guidelines are listed toward the end of the document, along with wiring diagrams for Y/C output and RS‑422A/RS‑485 communication interfaces. This manual is written in Chinese.

What's inside

Safety Precautions
Installation Guide
Operation Instructions
Camera Settings (SYNC ADJUST, ALC SETTINGS, VIDEO ADJUST, MODE SELECT, MOTION DETECT)
Communication Interfaces
Maintenance and Factory Settings
Technical Specifications

Specifications

Image Sensor	1/2 type IT CCD
Resolution	752 (H) × 582 (V) pixels
Horizontal Sync Frequency	15.625 kHz
Operating Temperature	-10 °C to 50 °C
Storage Temperature	0 °C to 40 °C
Dimensions (W×H×D)	35 mm × 70 mm × 149 mm

Frequently asked questions

What power sources can be used with the camcorder?

The camcorder can be powered by DC 12 V or AC 24 V supplies as specified in the manual.

What are the minimum illumination requirements for proper imaging?

The camera can operate down to a minimum illumination of 0.0095 lx (SENSE UP × 32).

Which communication interfaces are available on the V1027-1?

The device provides Y/C output terminals and RS‑422A/RS‑485 ports for external communication.
