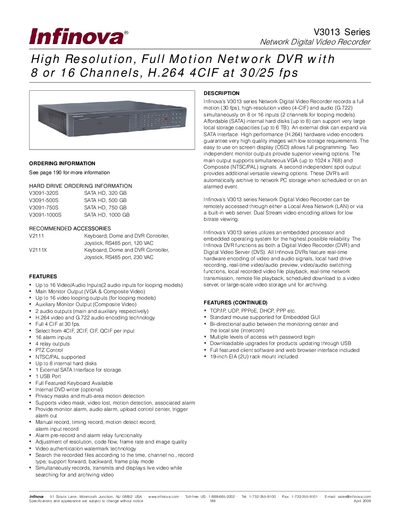

The Infinova V3013 Series Network Digital Video Recorder product leaflet details specifications, features, interfaces, and ordering options.
The V3013 Series Network Digital Video Recorder records full‑motion 4‑CIF video and G.722 audio on 8 or 16 inputs, with optional DVD and up to eight internal SATA hard disks. It offers dual‑stream H.264 encoding, on‑screen display, two independent monitor outputs, and extensive network capabilities.
The leaflet provides technical specifications, storage options, power requirements, front‑panel and rear‑panel layouts, and ordering information for both DVD‑equipped and disk‑less models, as well as looping‑input variants.
| Video Input Channels | 8 or 16 |
|---|---|
| Video Encoding | H.264 |
| Audio Encoding | G.722 |
| Maximum Internal Hard Disks | up to 8 |
| Power Consumption | 64 W (not including HD) |
| Electrical Input Voltage | 110 ~ 230 VAC (50 ~ 60 Hz) |
| Mechanical Dimensions (H×W×D) | 3.50" × 17.32" × 17.72" |
The V3013 supports either 8 or 16 video inputs.
It can hold up to eight internal SATA hard disks, one external SATA port, and optional DVD writer.
Supported protocols include IP, TCP, UDP, PPPoE, DHCP, and PPP.
Full 4 CIF at 30 fps is supported, with selectable lower resolutions such as 2 CIF, CIF, and QCIF.
