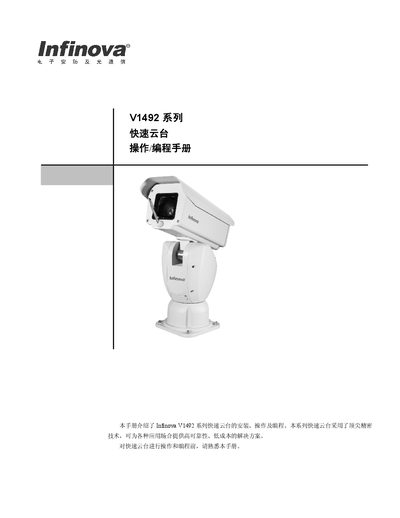

Infinova V1492 Series User Manual

This manual introduces the installation, operation and programming of the Infinova V1492 series fast pan-tilt units. This series of fast pan-tilt units adopts top-notch precision technology, providing high reliability and low-cost solutions for various applications.

Brand: Infinova
Category: Industrial Robot
Document type: User Manual
Language: Japanese
Pages: 44
File format: PDF
File size: 4.4 MB
Published: 01 April, 2012
Updated: 30 September, 2023
MD5 checksum: 32F055FE5CF731C7B6C80B7966EB7E12
PDF: Infinova V1492 Series User Manual PDF

About this manual

This manual introduces the Infinova V1492 series rapid PTZ unit, describing its high‑precision optics, weather‑proof housing and integrated control functions. It provides step‑by‑step installation guidance, safety warnings and detailed operating procedures.

The document also lists performance data such as optical and digital zoom ranges, power requirements, temperature limits and motion speeds, helping users configure and maintain the device for surveillance or industrial applications. This manual is written in Japanese.

What's inside

Product Description
Product Model
Performance Features
Installation
Operation
Menu Functions
Control Settings
Safety and Warnings
Technical Specifications
Appendix

Specifications

Digital Zoom	12x
Power Supply	24VAC / 120VAC / 230VAC

Frequently asked questions

What power sources can the V1492 series PTZ unit use?

It can be powered from 24 VAC, 120 VAC or 230 VAC.
