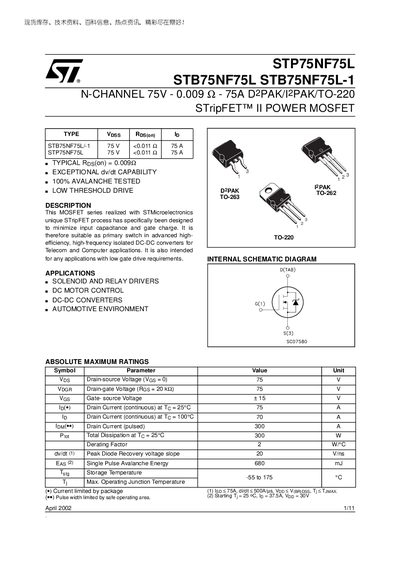

The STP75NF75L is a N-CHANNEL 75V - 0.009 Ω - 75A D2PAK/I2PAK/TO-220 STripFET™ II POWER MOSFET from STMicroelectronics. It features a TYPICAL RDS(on) = 0.009Ω, EXCEPTIONAL dv/dt CAPABILITY, 100% AVALANCHE TESTED and LOW THRESHOLD DRIVE. It is especially suitable for use as primary switch in advanced high- efficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications.
The STP75NF75L and STB75NF75L are N‑channel 75 V power MOSFETs realized with STMicroelectronics' STripFET™ process. They are designed for low input capacitance and gate charge, making them suitable for high‑efficiency, high‑frequency DC‑DC converters, solenoid and relay drivers, motor control, and automotive environments.
The document lists absolute maximum ratings, electrical characteristics such as drain‑source voltage of 75 V, continuous drain current of 75 A, typical on‑resistance of 0.009 Ω, and thermal data including a junction‑to‑case resistance of 0.5 °C/W. Mechanical dimensions for D2PAK, I2PAK, and TO‑220 packages are also provided.
| Drain‑source Voltage (Vds) | 75 V |
|---|---|
| Continuous Drain Current (Id) at 25 °C | 75 A |
| Typical On‑Resistance (Rds(on)) | 0.009 Ω |
| Junction‑to‑Case Thermal Resistance | 0.5 °C/W |
| Package Types | D2PAK / I2PAK / TO‑220 |
The MOSFET can handle a continuous drain current of 75 A at 25 °C.
The typical on‑resistance is 0.009 Ω.
It is offered in D2PAK, I2PAK, and TO‑220 packages.
