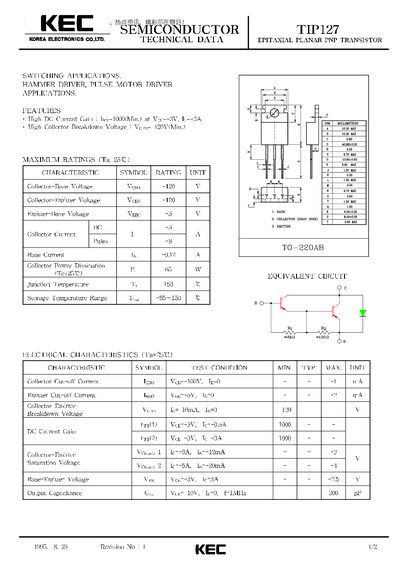

The TIP127 is an epitaxial planar PNP transistor presented by Korea Electronics. The datasheet provides electrical characteristics, ratings, and package information for use in switching applications such as hammer drivers and motor drivers.
Key parameters include a DC current gain of 1000, collector breakdown voltage of -120 V, and a TO‑220AB package. Storage temperature range is –55 °C to 150 °C, and the device can dissipate up to 65 W.
| DC Current Gain (hFE) | 1000 |
|---|---|
| Base Current (IB) | -0.12 A |
| Collector Current (IC) | 8 A |
| Power Dissipation (Collector) | 65 W |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Package | TO-220AB |
The TIP127 has a DC current gain of 1000.
The device can be stored between –55 °C and 150 °C.
It is supplied in a TO‑220AB package.
