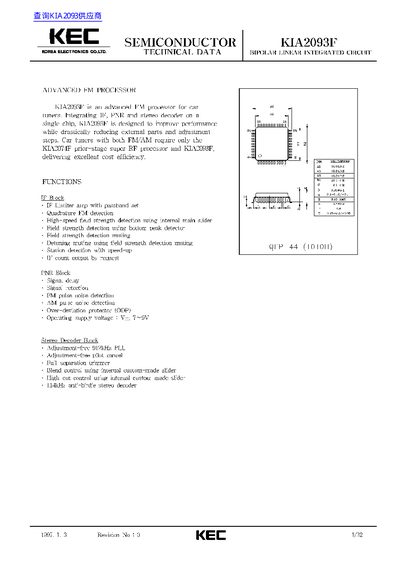

The KIA2093F is an advanced FM processor IC designed for car tuners, integrating IF, PNR and stereo decoder functions on a single chip. It reduces external parts and adjustment steps, offering cost‑efficient performance for FM/AM applications.
The document lists the chip's functional blocks (IF, PNR, stereo decoder), pin configuration, electrical characteristics, maximum ratings, and performance specifications such as supply voltage, power dissipation, temperature range, and distortion ratios.
| Operating supply voltage | 7~9 V |
|---|---|
| Power supply voltage (Vee) | 10 V |
| Operating temperature range | -40~85 °C |
| Storage temperature range | -55~159 °C |
The device operates with a supply voltage (Vec) of 7 to 9 volts.
It can operate from –40 °C up to 85 °C.
The device can be stored between –55 °C and 159 °C.
