Z02W2.0V~24V is a Z02W series Z-channel Schottky diode that can be used for constant voltage regulation and reference voltage applications. This diode features a small SOT-23 package and a normal voltage tolerance of about 2.5%.

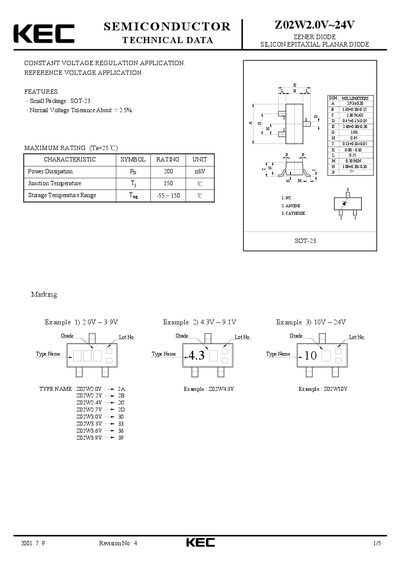

The KEC Z02W series provides silicon planar Zener diodes in a small SOT‑23 package. Available voltage grades range from 2.0 V up to 24 V, with typical voltage tolerance of ±2.5 %.
Key electrical characteristics include a maximum power dissipation of 200 mW, junction temperature rating of 150 °C, and storage temperature range from –55 °C to 150 °C. Detailed tables list dynamic impedance, knee voltage, and reverse current for each voltage grade.
| Package | SOT‑23 |
|---|---|
| Power Dissipation | 200 mW |
| Junction Temperature | 150 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Voltage Grades | 2.0 V – 24 V |
The Z02W Zener diode is supplied in a small SOT‑23 package.
The maximum power dissipation is 200 mW.
They can be stored from –55 °C up to 150 °C.
