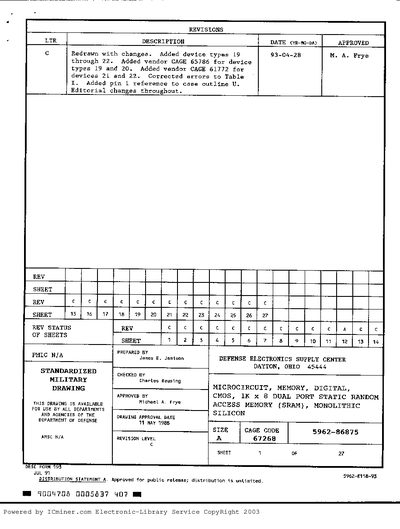

This document is a standardized military drawing (Drawing Number 67268) that describes device requirements for Class B microcircuits. It specifically covers 1K x 8 bit dual port CMOS Static Random Access Memory (SRAM) devices, including both Master and Slave configurations with various access times ranging from 35 ns to 90 ns.
The drawing details the Part Identifying Number (PIN), absolute maximum ratings, recommended operating conditions, electrical performance characteristics, and quality assurance provisions. It references applicable government specifications such as MIL-M-38510 and MIL-STD-883.
The maximum junction temperature is +150°C.
The device has a maximum power dissipation rating of 1.5 W.
The burn-in test must be conducted at a minimum temperature of +125°C.
