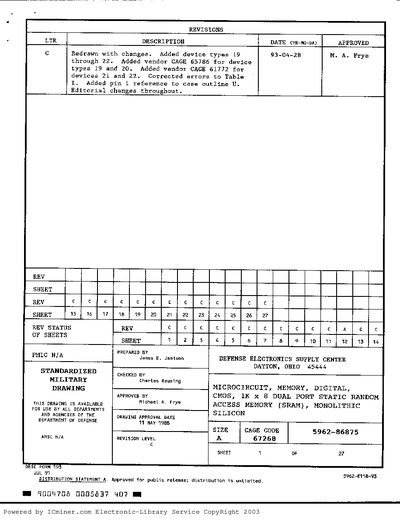

This document is a standardized military drawing (Drawing Number 67268) that describes device requirements for Class B microcircuits. It covers various types of 1K, 4K, and 16K x 8 bit dual port CMOS Static Random Access Memory (SRAM), including both Master and Slave configurations with access times ranging from 35 ns to 90 ns.
The datasheet details absolute maximum ratings, recommended operating conditions, electrical performance characteristics, and quality assurance provisions. It specifies case outlines such as GDIP1-T48, CDEP2-T48, and square leadless chip carriers, along with thermal resistance values and supply voltage ranges from 4.5 V to 5.5 V.
| Supply Voltage Range | -0.5 V de to +7.0 V de |
|---|---|
| Power Dissipation (Py) | 1.5 W |
| Junction Temperature | +150°C |
The recommended operating condition for supply voltage (Vee) is from 4.5 V de to 5.5 V de.
The device has a maximum power dissipation rating of 1.5 W.
The burn-in test must be conducted at a minimum temperature of +125°C.
