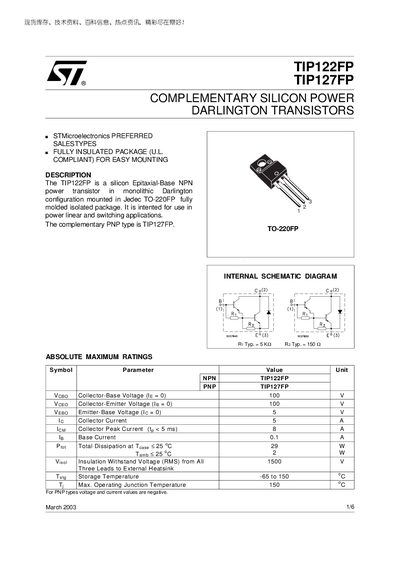

TIP122FP and TIP127FP are STMicroelectronics preferred sales type silicon power Darlington transistors in a monolithic Darlington configuration mounted in a Jedec TO-220FP fully molded isolated package.
The TIP122FP (NPN) and TIP127FP (PNP) are complementary silicon Darlington power transistors offered in a fully insulated TO‑220FP molded package. They are intended for linear and switching power applications and feature three leads for external heatsink attachment.
Key specifications include a collector‑emitter voltage of 100 V, collector current up to 5 A (peak 8 A), total power dissipation of 29 W, and thermal resistances of 4.3 °C/W (junction‑to‑case) and 62.5 °C/W (junction‑to‑ambient). Mechanical dimensions of the TO‑220FP package are listed, and storage temperature ranges from –65 °C to 150 °C.
| Collector‑Emitter Voltage (Vceo) | 100 V |
|---|---|
| Collector Current (Ic) | 5 A |
| Peak Collector Current (Iom) | 8 A |
| Total Dissipation (Pd) | 29 W |
| Junction‑to‑Case Thermal Resistance (Rθjc) | 4.3 °C/W |
| Junction‑to‑Ambient Thermal Resistance (Rθja) | 62.5 °C/W |
| Storage Temperature Range | -65 to 150 °C |
| Maximum Operating Junction Temperature (Tj max) | 150 °C |
The maximum collector‑emitter voltage is 100 V.
The device can handle a continuous collector current of 5 A.
Both transistors are supplied in a fully molded insulated TO‑220FP package.
They can be stored from –65 °C up to 150 °C.
